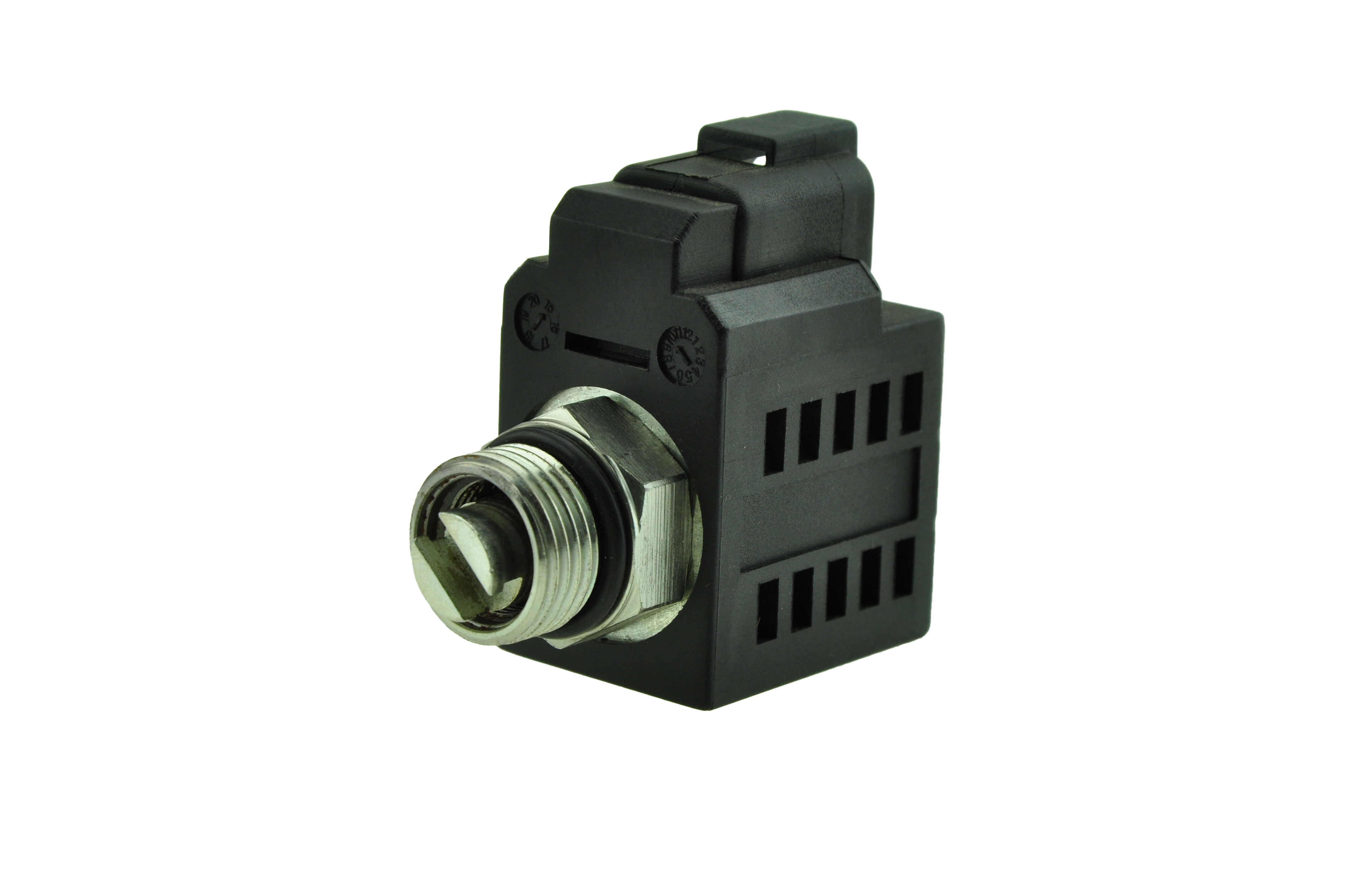

Cartridge Valves
Cartridge Valves
DOWNLOAD THE SPECIFICATION
| Model No | SV37-1(12VDC) |
|---|---|
| Power type | DC |
| Rated Voltage（V） | 12 |
| Rated Current（A） | 1.5 |
| Rated Force（N） | ≥50 |
| Full Stroke（mm） | 2.6 |
| Oil Pressure Duration（MPa） | 21 |
| Resistance（Ω/20℃） | 5±0.25 |
| Isolation Grade | H/180℃ |
| Max Switch Frequency（t/h） | 15000 |
| Life Cycle（t） | 10X106 |
| Relative Duty Rating（%） | 100 |
| Protection Grade | IP66 |
S—F Characteristic Curve Test Current : 1.5A
-
SV22/37-YC Solenoid Series is the Solenoid which is connected by screw thread. The way of its working has three types: constant open, constant close, double direction. lt’s suitable for 6mm-22mm inserting valves. The voltage can be 24VDC,12VDC,9VDC, or 220VAC,50-60Hz. It also can be designed according to different electrical source of the customers. Among them, SV22-QF is for Air Valves.
