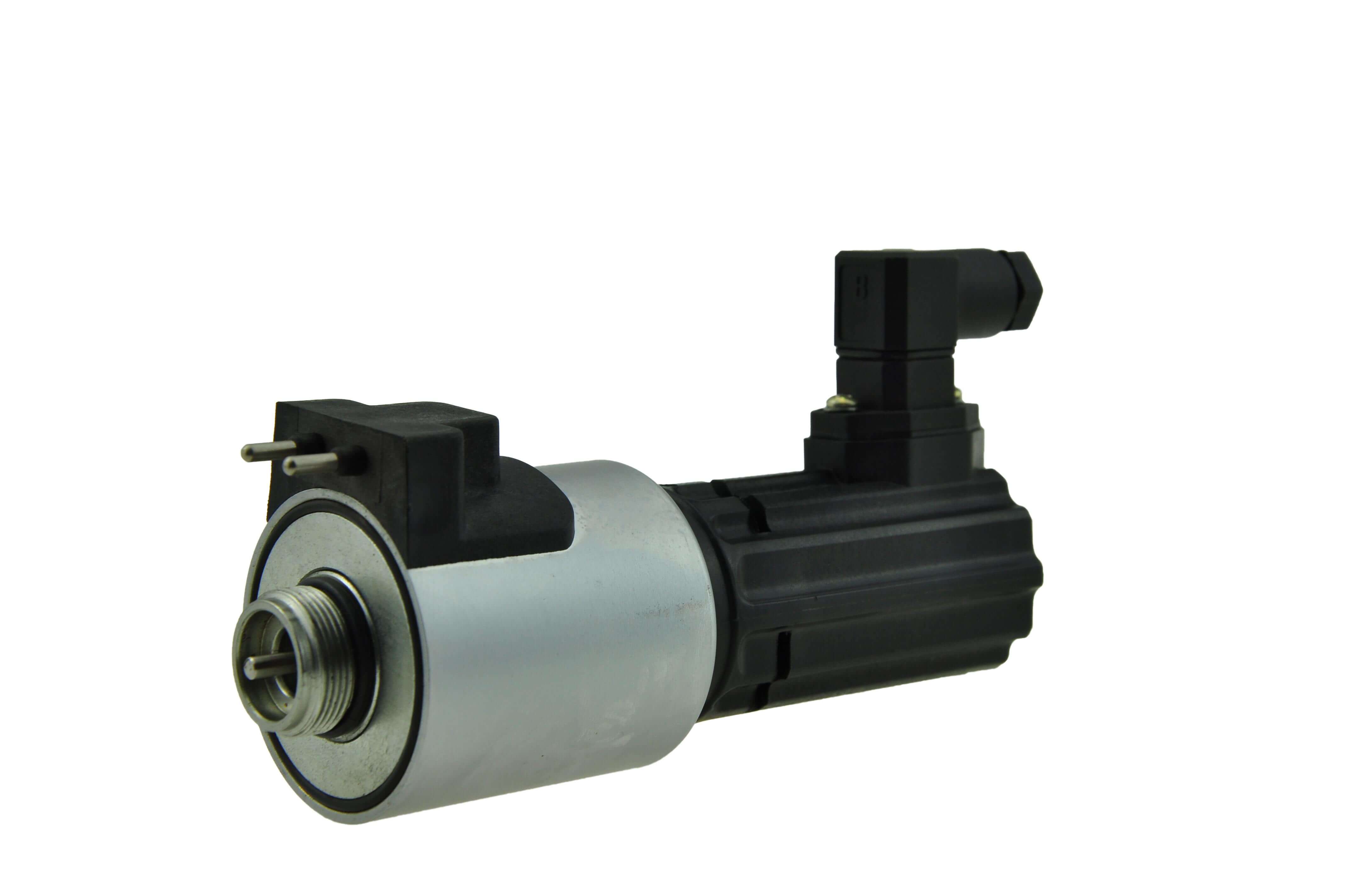

Solenoid with Sensor
Solenoid with Sensor
DOWNLOAD THE SPECIFICATION
| Model | PM-H6-SC63T |
|---|---|
| Rated current（mA） | 2.5A |
| Rated Force（N） | 160 |
| Force Lag Characteristic（%） | ≤5 |
| Full Stroke（mm） | 9 |
| Oil Pressure Duration（MPa） | 21 |
| Resistance（Ω/20℃） | 3.7 |
| Repeat Accuracy（%） | ≤1 |
| Current Lag Characteristic（%） | ≤3 |
| Rated Stroke（mm） | 4 |
| IP Grade | IP65 |
S—F Characteristic Curve Test Current : 2.5A
-
This product is used in the electric-hydraulic control system, together with the proportional amplifier, realizes the control of NG6 NGlO proportional valve of REXROTH. In the range of therated stroke and rated current, the output force is proportional to input current. It changes the characteristic force of the system through the internal spring to make output force more stable. The stepless regulation in the range of rated input current can realize the stepless control and telecontrol of the hydraulic system.
