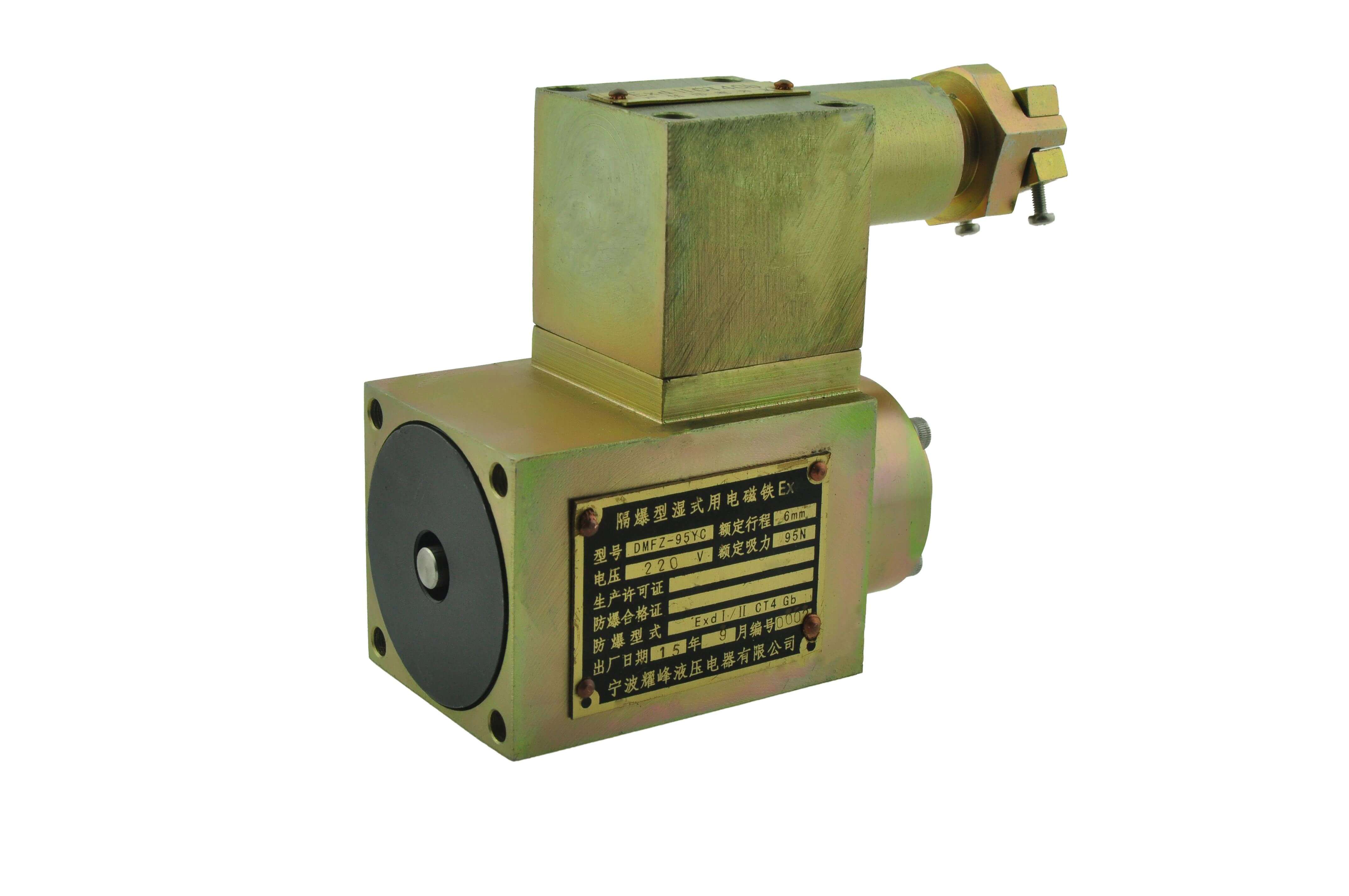

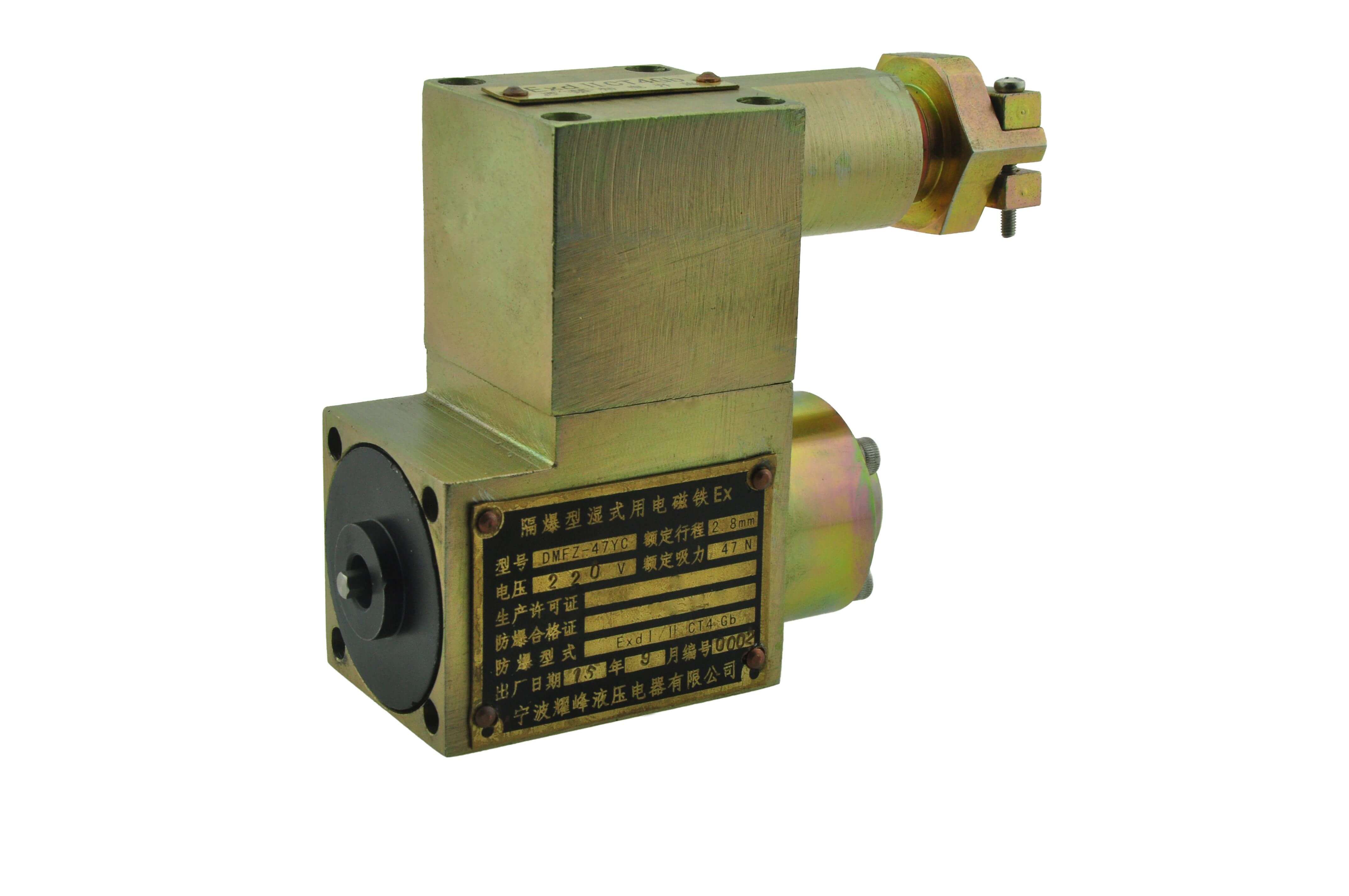

Ex-proof Solenoids
DOWNLOAD THE SPECIFICATION
| Model No | DMFZ-50YC |
|---|---|
| Electrical Type | DC |
| Rated Voltage（V） | 24 |
| Voltage Fluctuation（%） | ±10 |
| Power Consumption（W） | 28 |
| Rated Force（N） | 50 |
| Cold Current（A） | 1.16 |
| Full Stroke（mm） | ≥6.1 |
| Rated Stroke（mm） | 3 |
| Insulation Class | F |
| Relative Duty Rating（%） | 100 |
| Oil Pressure Duration（MPa） | 21 |
| Protection Grade | IP65 |
| Explosion-proof Mark | Exd I Mb |
| Life Time（t） | 10X106 |
S—F Characteristic Curve Test Current : 0.94A
- This series of ex-proof wet-pin solenoids can be applied to mine flameproof Exd I Mb，chemical environment with flameproof Exd II CT4 explosive gas environment. As a power component of the hydraulic solenoid directional valve, it can be used in NG6 screw connected solenoid directional valve。.Solenoid type wiring using the introduction, connect with the valve by the threaded, installation, easy to install and repair. Power and energy is lower than similar products with reliable performance.
